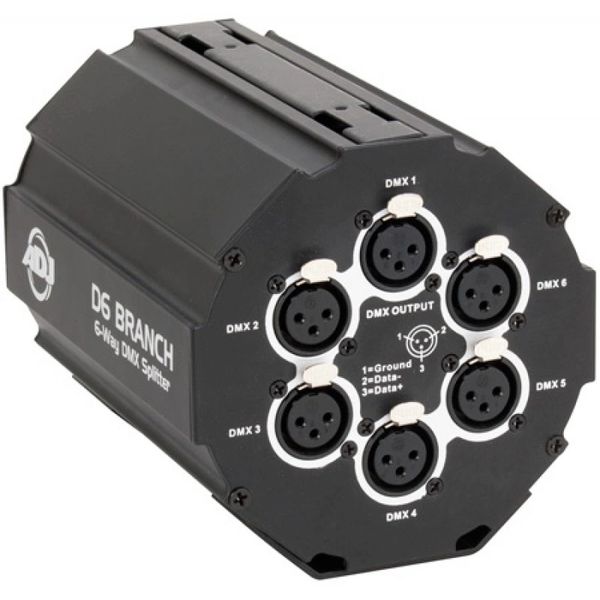

American DJ D6 Branch 6-Way DMX splitter/amplifier
Do you want to manage your DMX fixtures in a more organized fashion using an easy solution? The D6 Branch from American DJ is the solution you need. The D6 Branch Splitter/Amplifier allows you to make your fixtures easy to manage. By significantly reducing your need for DMX cables in your production you make set-up easier, reduce the risk of a plug failure or tripped over wire, while also making your whole production cleaner and less cluttered.
Though lightweight, the D6 Branch is built from high quality materials making it the ideal blend of functionality, durability and portability. This unit is perfect for any club, bar, stage or mobile show looking to reduce their need for wires, decrease set-up time, and eliminate restrictions on where controllers and fixtures can be placed in relation to one another. Modernize your light show production today, go professional with the D6 Branch DMX Splitter/Amplifier from American DJ.
Specifications
- 6-Way DMX Splitter & amplifier
- 1x DMX In, 6x DMX Out & 1 DMX Thru (all 3-pin XLR’s)
- Link with other D6 Branch Splitters
- Input & outputs are electrically and optically isolated from each other
- Includes 2x Velcro straps to securely attach to truss
- Clamp mount bracket included
- On/Off power switch
- Multi-voltage operation: AC 100-240V, 50/60Hz (IEC Socket)
- Dimensions (LxWxH): 4.75”x5”x6” / 118.5x122.5x153mm
- Weight: 2.5 lbs/ 1 kg.
